TS-G and TS-P is a precise protector with plastic housing. It is sensitive to both temperature and current and can protect motor or transformer from over heating or loading effectively.

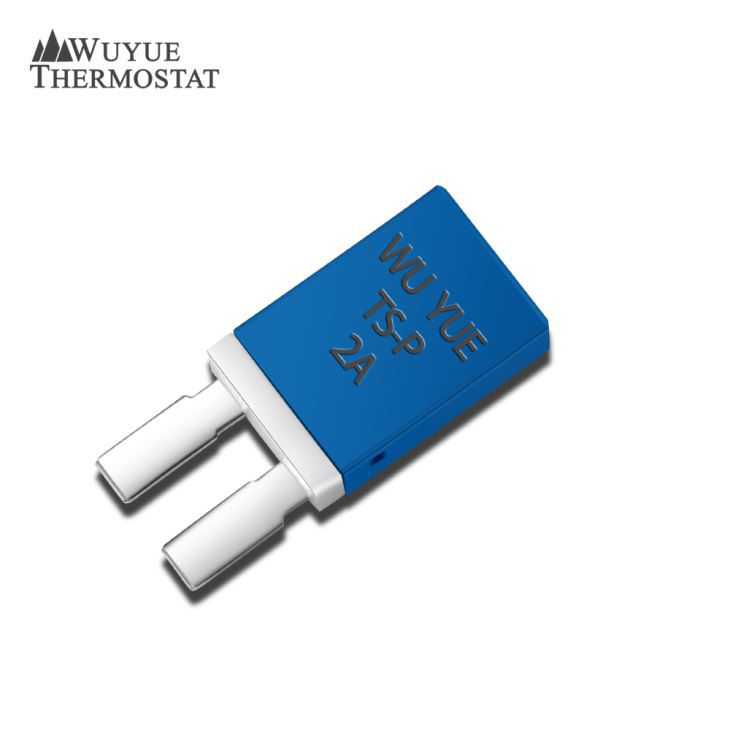

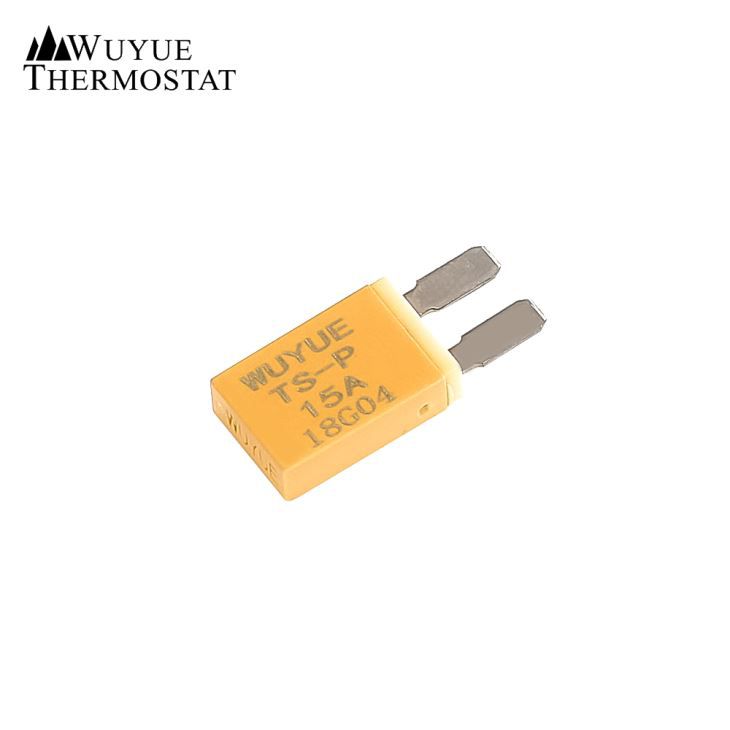

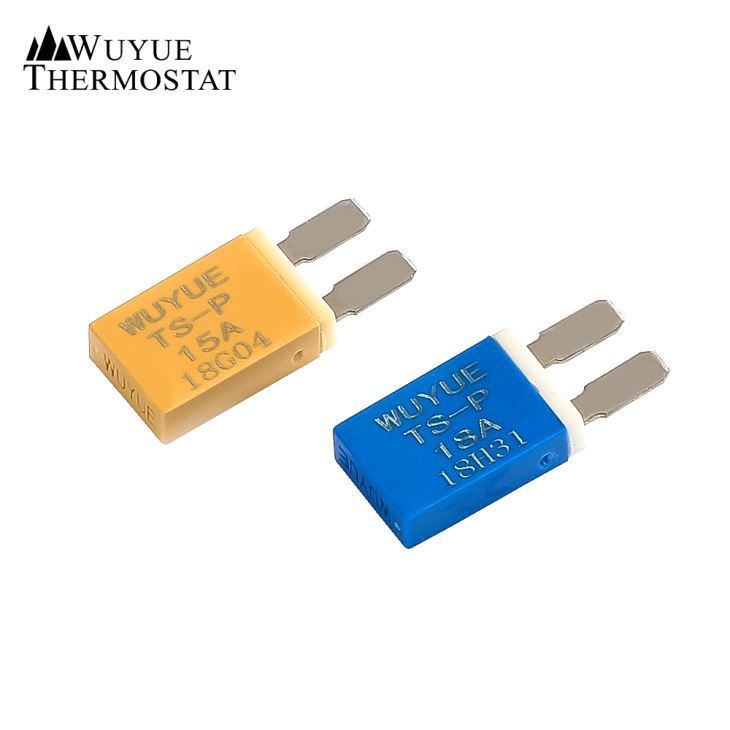

TS-P and TS-G car window motor protector
| Special Features |
* Small size, long life and high reliability;
* Accurate trip off time to prevent motor from overheating;
* Both temperature and current sensitive;
* Terminals are variable;
* Working temperature:-20℃~80℃
| Electrical Specifications |
125V AC / 250V AC : 2~20A
12V DC / 24V DC: 3~35A
Trip off current range: 2~35A
R/T 25℃ Current Testing Standards: 4~10S (Or Customized)
| Temperature Range And Tolerance |
| Operating Temperature | 60~180℃ （Each 5℃ Per Rating） |
| Operating Temperature Tolerance | ±5℃， ±7℃ |
| Design Principles |
When ambient temperature or current exceeds the specified value, the inside bimetal of TS series will trip off to cut the circuit. When the temperature lowers down, the bimetal will reset and the circuit is connected again.
| Application |
Car Widow Motor
Wiper Motor
Car Seat Motor
Skylight Motor
Soybean Milk Machine
Juice Machine
Food Processer
Noodle Machine
| Dimensional Drawings |
